Esp32 P3 P4 Matrix DHT22 DHT11 RTC SD CARD FFT Audio GPxMatrix

GPxMatrix library for 32x16, 32x32, 64x32, 128x32, 64x64, 128x64 RGB matrix modules..

I think a RGB LED Matrix is one of the best displays for an Arduino project at the moment, they are large, pretty easy to use and it's not even that expensive. In this video I show how to get one working with an ESP32

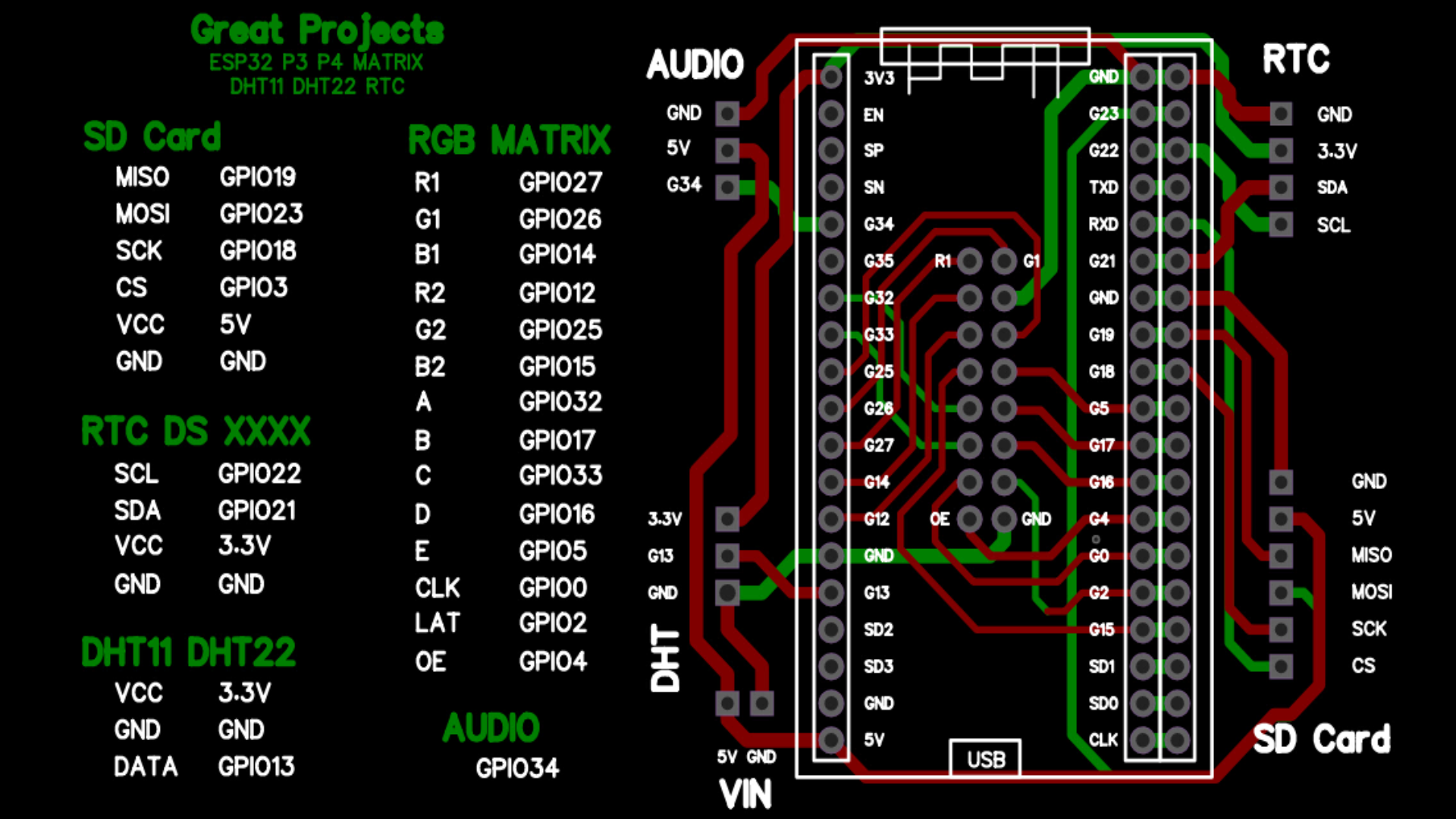

Schema





Library: https://github.com/3tawi/GPxMatrix

Gerber File: https://drive.google.com/file/d/1KK7Un4WcsYY3KcCUhMgP9XdCz5RsvAat/view?usp=sharing
